Application

Features

15 years design life @ 25℃
Extended service life in elevated temperature applications
Pure Lead Plus Technology with ultra low float current and long life float service design
Tested and qualified by Telecordia to meet SR-4228 requirements
True Front Access threaded copper alloy inserts for reduced maintenance and increased safety
Terminal versatility - ease of diagnostic readings with C&D Ohmic Ring®
Reduced headspace driving higher energy density, in cabinet or rack applications
Innovative front terminal design maximizing energy density with direct connect extrusion fusion weld technology

Flame-arresting, one-way pressure-relief vent for safety and long life
Absorbent Glass Mat (AGM) technology for efficient gas recombination of over 99%
Flame-arresting, one-way pressure-relief vent for safety and long life
Complies with UL 1778, 924, 1989 and 94 V-0, BS6290-4, IEC60896
Not restricted for air transport -Complies with IATA/ICAO Special Provisions A67
Not restricted for surface transport -Classified as non-hazardous material as related to DOT-CFR Title 49 parts171-189
Not restricted for water transport -Classified as non-hazardous material per IMDG Amendment 27

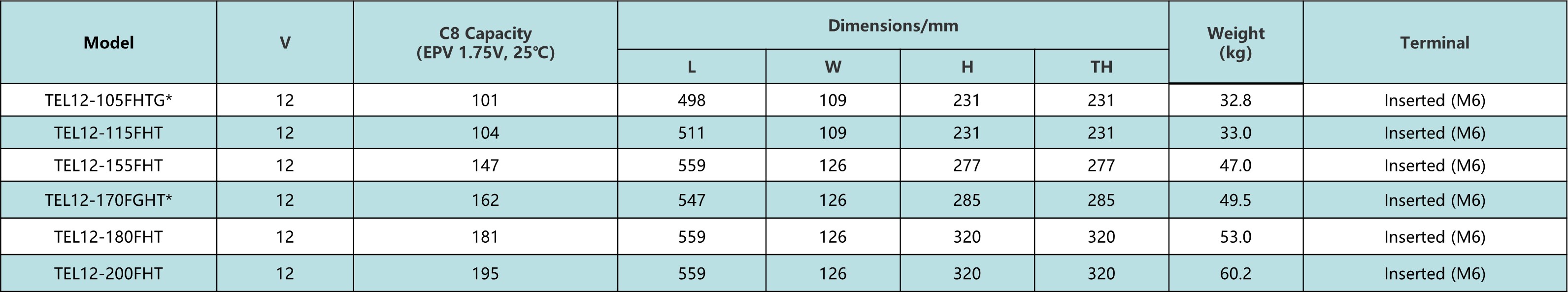

Specifications

*All dimensions are for reference only. Contact a C&D Representative for complete dimensional information.
